Rigaku OD XtaLAB Synergy R Custom with robotics ACTOR (PXD)
Guarantor:
Tomáš Klumpler, Ph.D.
Technology / Methodology:
X-ray Diffraction
Instrument status:
Operational, 22.4.2022 14:32
Equipment placement:
C12/115
Research group:
Biomolecular Interactions and Crystallography Core Facility
Description:
Rigaku OD (Oxford Diffraction) XtaLAB Synergy R Custom with robotics ACTOR, set of instruments optimized for ´home lab´ diffraction experiments with single crystals of macromolecules.
Components :
Rigaku MicroMax-007HF, rotating anode generator of Cu Kα X-ray,
Rigaku VariMax VHF, optics to obtain an intense, monochromatic X-ray beam with adjustable divergence,
Rigaku OD XtaLAB Synergy Custom, 4-circle kappa geometry goniometer,
Rigaku Intelligent Goniometer Head (IGH), motorized goniometer head with automated optical object centering,
Rigaku HyPix-6000HE, large area hybrid photon counting detector of X-ray,

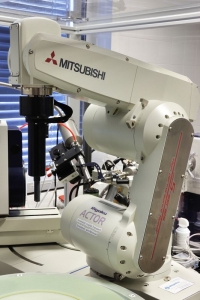

ACTOR, Automated Crystal Transport Orientation and Retrieval Robot, robotics for automated sample cryomanipulation,
Oxford Cryosystems Cryostream 700, low-temperature device for cryotemperature experiments.
Software: CrysAlis Pro
